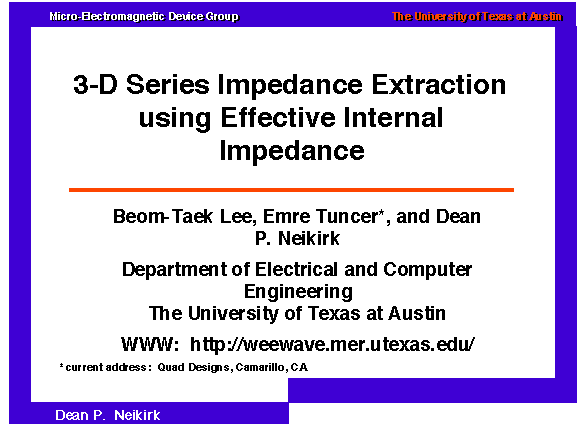

3-D Series Impedance Extraction using Effective Internal Impedance

Beom-Taek Lee, Emre Tuncer*, and Dean P. Neikirk

Department of Electrical and Computer Engineering

The University of Texas at Austin

WWW: http://weewave.mer.utexas.edu/

*current address: Quad Design

This work was supported by the Texas Advanced Technology Program and the ARPA ASEM Program

Impedance Extraction using Effective Internal Impedance

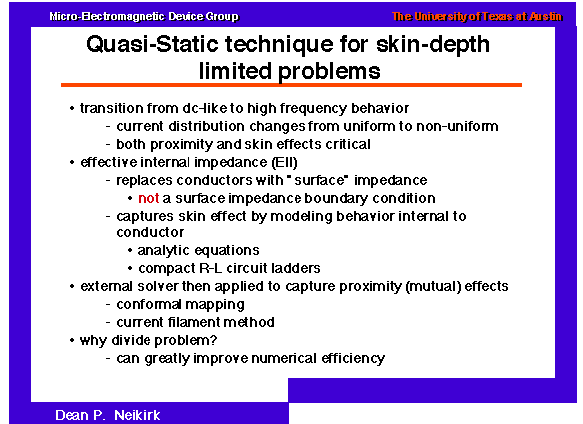

Quasi-Static technique for skin-depth limited problems

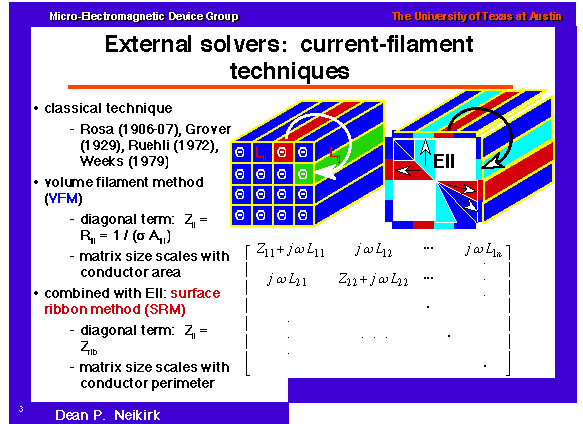

External solvers: current-filament techniques

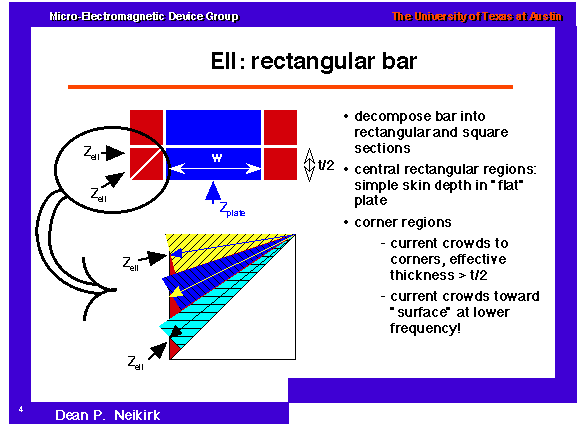

EII: rectangular bar

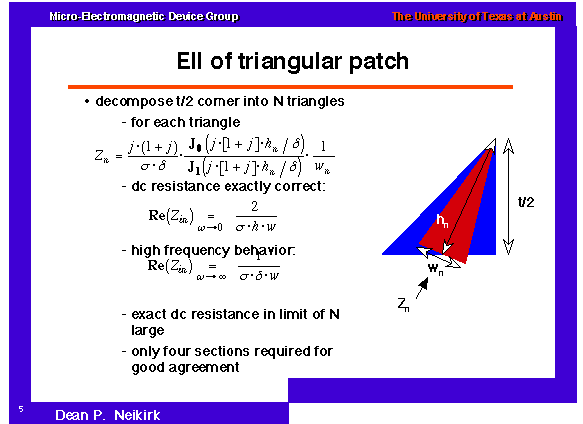

EII of triangular patch

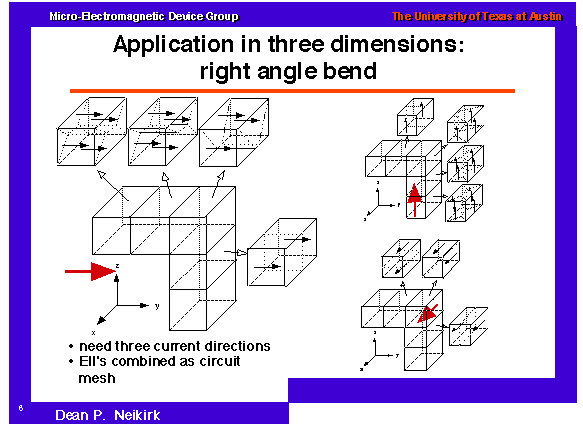

Application in three dimensions: right angle bend

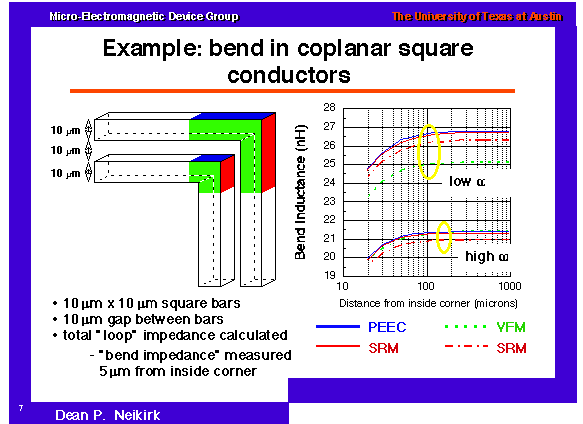

Example: bend in coplanar square conductors

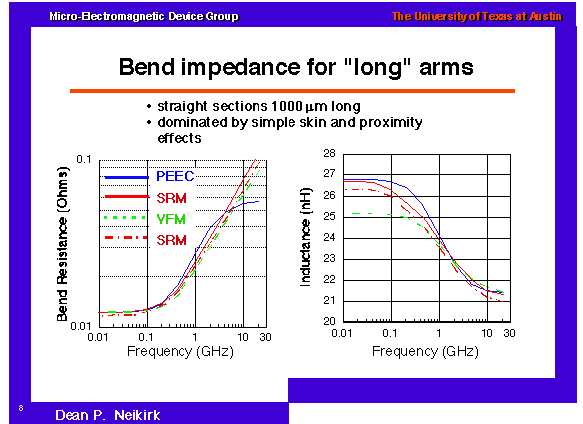

Bend impedance for long arms

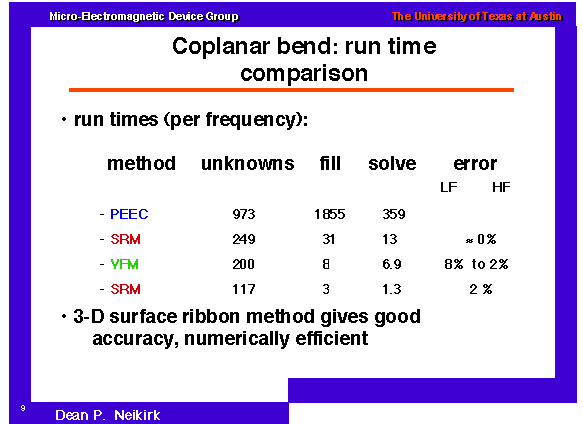

Coplanar bend: run time comparison

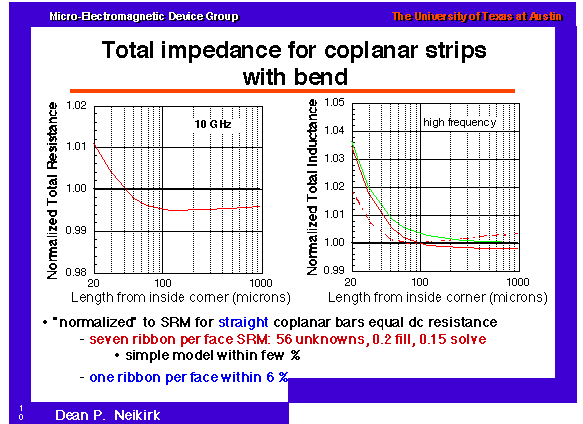

Total impedance for coplanar strips with bend

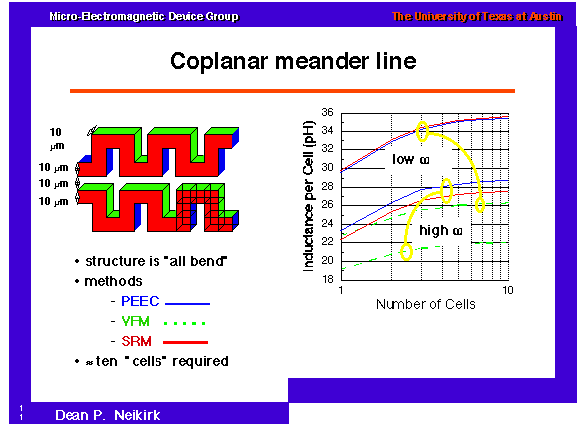

Coplanar meander line

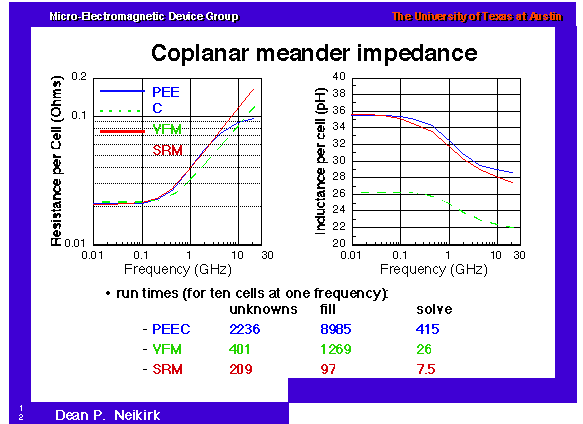

Coplanar meander impedance

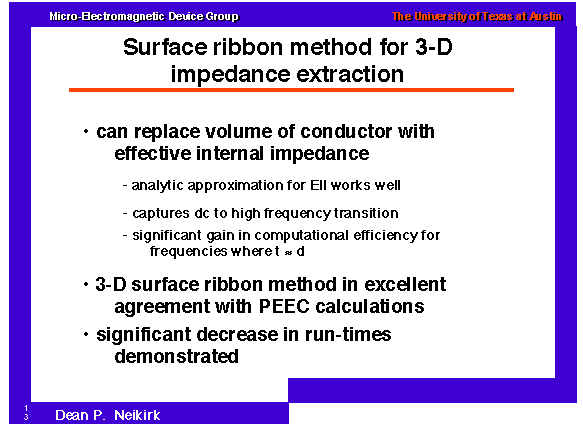

Surface ribbon method for 3-D impedance extraction
